[ Specification ]
| Length |
345mm |
| weight |
420g |
| Input propagation / frequency |
220V AC, 50/60Hz |
| Polar |
cathode(-) |
| Output constant voltage |
0 ~ 100Kv |
| Input air pressure |
6 ~ 8bar |
| Maximum discharge amount |
500g/min |
| Maximum compressed air consumption |
24Nm3/hr |
| Ambient temperature control |
5 ~ 45 °C |

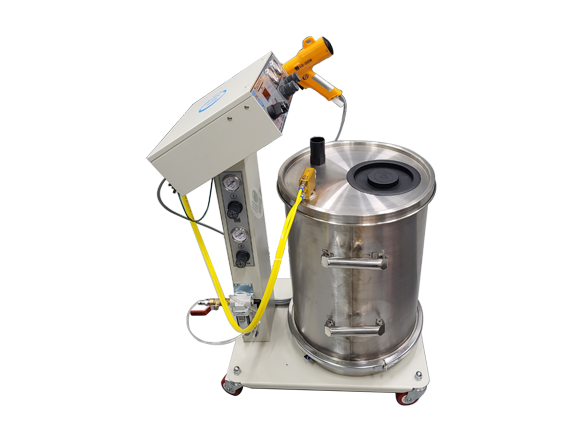

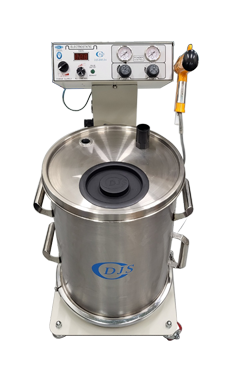

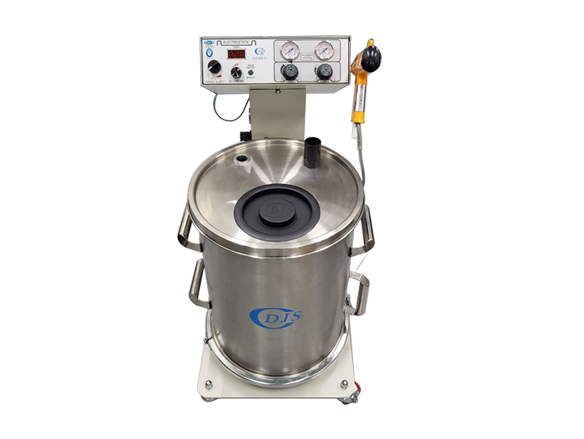

Manual powder coating machine(003-B101)
[ Specification ]
| Length |
345mm |
| weight |
420g |
| Input propagation / frequency |
220V AC, 50/60Hz |
| Polar |
cathode(-) |
| Output constant voltage |
0 ~ 100Kv |
| Input air pressure |
6 ~ 8bar |
| Maximum discharge amount |
500g/min |
| Maximum compressed air consumption |
24Nm3/hr |
| Ambient temperature control |
5 ~ 45 °C |

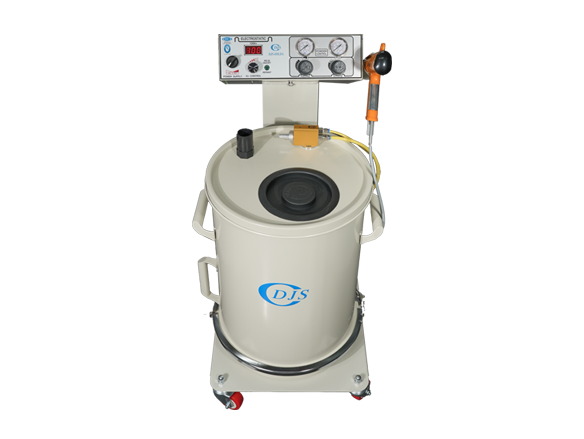

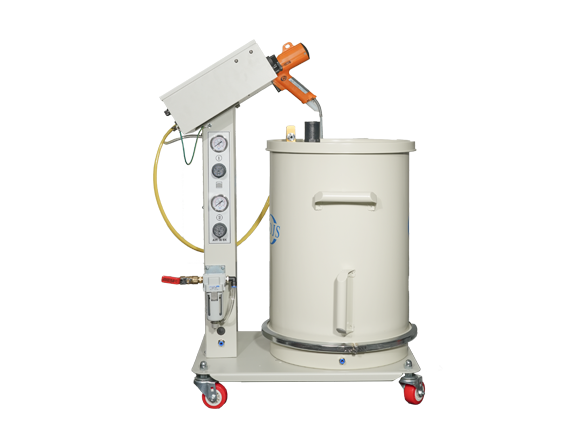

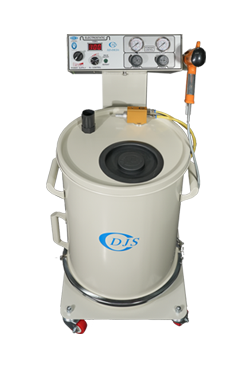

Manual powder coating machine (003-B102 SUS)
[ Specification ]
| Length |
360mm |
| weight |
840g |
| Input propagation / frequency |
220V AC, 50/60Hz |
| polarity |
cathode(-) |
| Output constant voltage |
0 ~ 100Kv |
| Input air pressure |
6 ~ 8bar |
| Maximum discharge amount |
550g/min |
| Maximum compressed air consumption |
25m3/hr |
| Ambient temperature control |
5 ~ 45 °C |

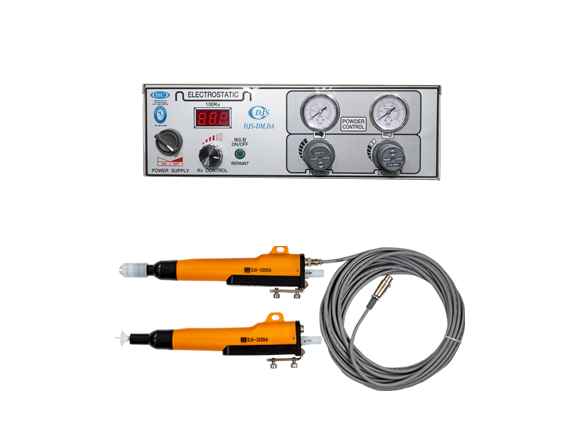

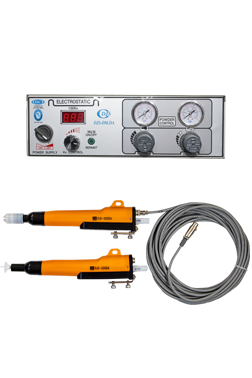

Automatic powder coating machine(003-DA101)
[ Specification ]
| Length |
345mm |
| weight |
420g |
| Input power |
220V AC |
| frequency |
50/60Hz |
| polarity |
cathode(-) |
| Output constant voltage |
0 ~ 100Kv |
| Input air pressure |
6 ~ 8bar |
| Maximum discharge amount |
500g/min |
| Maximum compressed air consumption |
24m3/hr |
| Ambient temperature control |
5 ~ 45 °C |
|
Used in places where color change is frequent |

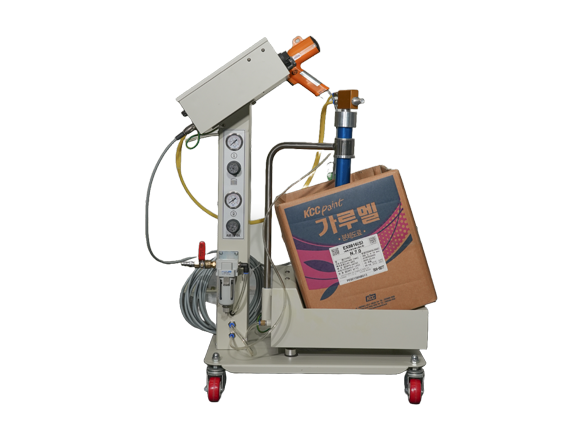

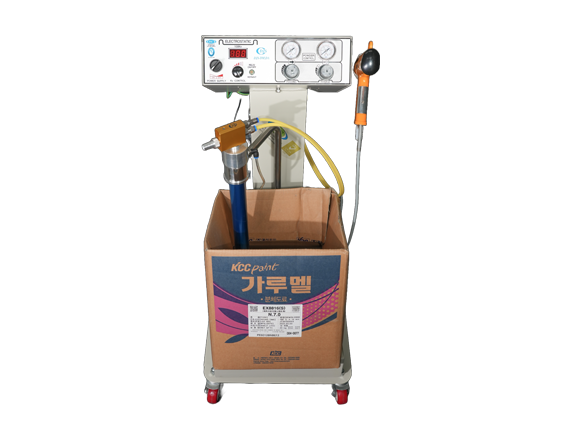

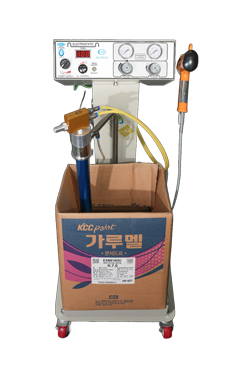

Hopares(003-D101)
[ Specification ]
| Length |
345mm |
| weight |
420g |
| Input power |
12V |
| frequency |
max 40Khz |

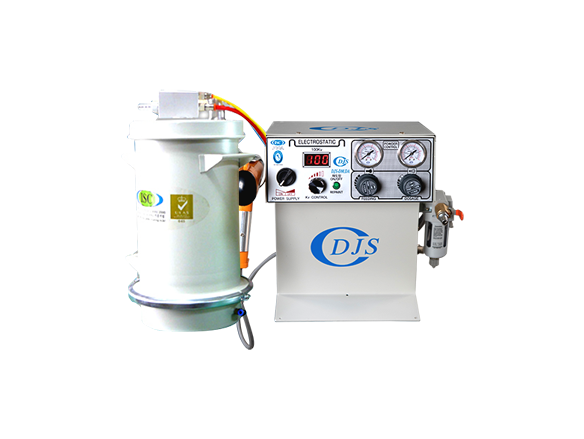

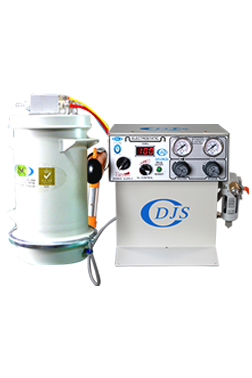

Experimental powder coating machine(003-E)
[ Specification ]
| Length |
L26 |
| Dry weight |
640g |
| Input power |
12V |
| Frequency |
max 40 Khz |

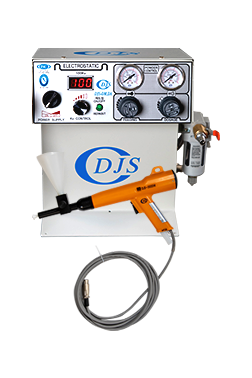

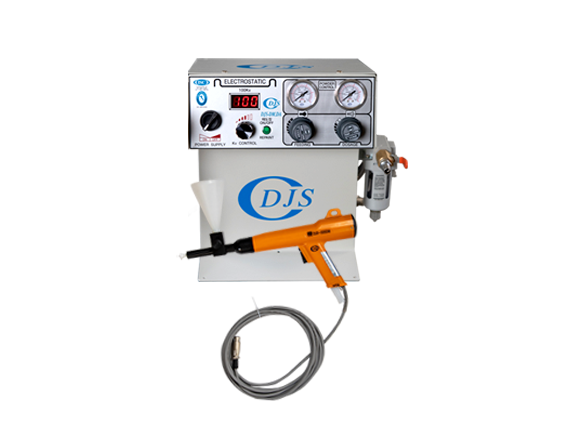

Experimental powder coating machine(003-F)
